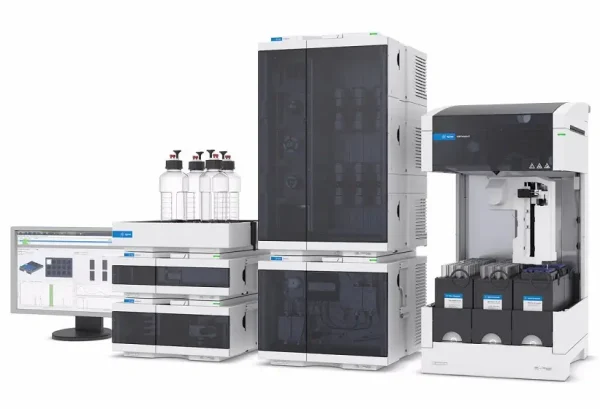

HPLC Preparative

دستگاه HPLC Preparative برای جداسازی و تخلیص purification  نمونه ها

HPLC Preparative                 200 mL/min

HPLC Semi-Preparative         50 mL/min

HPLC Analytical :                 0.01 to 10 mL/min

دستگاه HPLC Preparative برای جداسازی و تخلیص purification
دستگاه HPLC Preparative برای جداسازی و تخلیص purification نمونه ها







1290 Infinity II Autoscale Preparative LC System یک راه حل مقیاس پذیر و مبتنی بر گردش کار است که مقیاس خودکار را از جستجوی متود آنالیتیکال تا تخلیص purification بهینه را تسهیل می کند.

افزایش مستقیم مقیاس scale-up از جستجوی تحلیلی تا خالص سازی purification در مقیاس گرم، امکان انتقال بدون درز در فرآیند توسعه دارو را فراهم می کند.

این افزایش مقیاس تضمین می کند که روش ها و شرایط خالص سازی purification بهینه شده در مقیاس تحلیلی می توانند به طور قابل اعتماد و کارآمد در مقادیر بیشتری از ترکیب مورد نظر اعمال شوند.



نرم‌افزار Automated Purification Software Agilent برای OpenLab ChemStation انتقال خودکار روش‌های تخلیص purification  را از آنالیتیکال به خالص سازی purification در مقیاس آماده‌سازی امکان‌پذیر می‌سازد.

گرادیان های متمرکز برای هر ترکیب هدف target محاسبه می شوند و از بالاترین خلوص و بازیابی همه collected fractions اطمینان حاصل می کنند.







مزایای دستگاه HPLC Preparative :

  • تزریق نمونه و fraction collection کاملاً اتوماتیک و ترکیبی
  • دارای رنج فلو گسترده  1-200 mL/min
  • دارای 10 جایگاه Column Capacity
  • ظرفیت تزریق inject تا 864 نمونه یاcollect up fraction تا 432 فراکسیون یا هر ترکیب دیگر برای انعطاف پذیری کامل
  • افزایش مقیاس از HPLCآنالیتیکال در یک سیستم واحد برای به حداکثر رساندن خلوص maximize purityو ظرفیت شما برای افزایش توان روزانه شما امکان‌پذیر می‌سازد.
  • نرخ جریان تا 200 میلی‌لیتر در دقیقه از ستون‌های 50 میلی‌متری id پشتیبانی می‌کند و تعداد تزریق‌های مورد نیاز را برای ترکیب خالص‌تر در واحد زمان کاهش می‌دهد.
  • بالاترین دانسیته Highest fraction density per unit bench space
  • پشتیبانی از گردش‌های کاری workflows خودکار از طریق اطلاعات توالی‌های نمونه در حالی که تنها بر ترکیبات هدف خود تمرکز می‌کنید تا زمان تحلیل مجدد و فرمول‌بندی مجدد collected fractions را به حداقل برسانید.
  • سیستم تخلیص اتوماتیک automated scale purification system مقیاس بسیار قابل اعتماد و قوی توانایی شما را برای مدیریت تقاضای بار کاری در حال افزایش بهبود می بخشد.
  • سرهای پمپ با قابلیت تغییر آسان، محدوده جریان دینامیکی تا 200 میلی لیتر در دقیقه با حداکثر 600 بار را برای کاربردهای همه جانبه در طیف گسترده ای از جریان های کاری آماده سازی فراهم می کند.
  • fractioncollectorقابل ارتقا بر اساس تقاضای شما.
  • فناوری سنسور Fraction Collector یکپارچه و خودکار برای افزایش خلوص و collected fractions
  • کنترل و سازماندهی دریچه ها valves: 5 اسلات چند منظوره سازماندهی بهبود یافته دریچه ها valves ، fraction delay coils و Agilent 1290 Infinity II MS Flow Modulator را برای افزایش قابل توجه بهره وری فراهم می کند.
  • ادغام تمام حالت‌های collection modes استاندارد و سازگاری با چندین منبع trigger ، سازگاری با متود تخلیص purification methods موجود را فراهم می‌کند.
  • کمترین حجم تاخیر Lowest delay volume برای به حداقل رساندن پخش پیک peak dispersion و carryover برای ریکاوری و خلوص نمونه عالی.
  • زیرساخت نرم افزار از طریق نسخه Agilent OpenLab CDS ChemStation برای عملکرد راحت و قابل اعتماد
  • نرم افزار Automated purification software دری را به روی اتوماسیون جریان کار باز می کند تا از شرایط HPLC تحلیلی به مقدماتی بر اساس الگوریتم های علمی ارتقا یابد و نیاز به توسعه روش های زمان بر برای بهبود چرخه های خالص سازی روزانه را از بین ببرد.
  • ظرفیت fraction نمونه مقیاس پذیر Scalable بر اساس نیاز شما تا حداکثر 1296 fractions







1290 Infinity II Preparative LC Systems

بهترین دستگاه HPLC Preparative برای جداسازی و تخلیص purification  نمونه ها تا نرخ جریان   1-200 mL/min

برای حل تمام چالش های خود با خلوص purification ، ریکاوری و سرعت بالا، انعطاف پذیری فوق العاده ای دریافت کنید.

دستگاه HPLC Preparative  سیستم کروماتوگرافی مایع آماده سازی 1290 Infinity II تجسم نسل بعدی برای LC آماده سازی است که عملکرد فوق العاده بالایی در تخلیص purification ارائه می دهد.







1260 Infinity II Preparative LC Systems

دستگاه HPLC Preparative با خالص سازی کار آمد و fraction collector مقرون به صرفه به بالاترین خلوص و بازیابی دست یابید.

از انعطاف پذیری بالا در fraction size با حفظ ریکاوری با دقت بالا بهره مند شوید.







 1220 /1260 / 1290 Infinity II دستگاه HPLC Semi-Preparative & HPLC Preparative  HPLC Analytical & در مقیاس آنالیتیکال سیستم های خالص سازی LC کروماتوگرافی مایع

برای خالص‌سازی پروتئین‌ها یا نمونه‌های حساس، مدل bio-inert را انتخاب کنید.

انواع دستگاه HPLC
انواع دستگاه HPLC





سرمایه گذاری مطمئن در آینده

InfinityLab LC Purification Solutions بر اساس یک پلت فرم مشترک است.

 از میان سیستم های از پیش پیکربندی شده انتخاب کنید، یا راه حلی متناسب با نیازهای تخلیص خاص خود را برای کشف، تحقیق یا تولید در مقیاس کوچک انتخاب کنید.

مسیرهای ارتقا یکپارچه به شما امکان می دهد ظرفیت را برای برآورده کردن تقاضاهای در حال تغییر افزایش دهید.

دستگاه HPLC Preparative
دستگاه HPLC Preparative





Load & Lock Columns

Product Description Product Number Usage

123 MultiPacker Station Air-driven hydraulic packing station for 1, 2, and 3 inch Load & Lock columns PCG93LLSTAND123 P

Load & Lock Column 27 × 500 mm Maximum working pressure 134 bar; maximum sorbent capacity 90 grams;

with stainless steel water jacket

PCG93LL500X25WJ P

Load & Lock Column 50 × 500 mm Maximum working pressure 134 bar; maximum sorbent capacity 590 grams;

with stainless steel water jacket

PCG93LL500X50WJ P

Load & Lock Column 75 × 500 mm Maximum working pressure 134 bar; maximum sorbent capacity 1325 grams;

with stainless steel water jacket

PCG93LL500X75WJ P

Prep Columns

InfinityLab Poroshell 120 SB-C18 21.2 × 150 mm, 4 μm, 120 Å 670150-902 P

InfinityLab Poroshell 120 HPH-C18 21.2 × 150 mm, 4 μm, 100 Å 670150-702 P

InfinityLab ZORBAX Eclipse Plus C18 21.2 × 150 mm, 5 μm, 95 Å 595150-902 P

InfnityLab ZORBAX SB-C18 21.2 × 150 mm, 5 μm, 80 Å 585150-902 P

InfinityLab Pursuit XRs C18 21.2 × 150 mm, 5 μm, 100 Å INF6000150X212 P

InfinityLab Pursuit XRs C18 30 × 150 mm, 5 μm, 100 Å INF6000150X300 P

PLRP-S 25.0 × 150 mm, 8 μm, 100 Å PL1212-3800 P

PLRP-S 50.0 × 150 mm, 8 μm, 100 Å PL1712-3800 P

For a complete list of dimensions and chemistries, refer to

Bulk Media

C18 Media Prep-C18, 10 μm, 100 Å, 1000 g 420910-902 P

Silica Media Prep-Silica, 10 μm, 100 Å, 1000 g 420910-901 P

Polymeric Media PLRP-S, 8 μm, 100 Å, 1000 g PL1412-6800 P

1260 Infinity II Variable Wavelength Detector ± 2.5 μAU/cm noise; 120 Hz (single wavelength detection);

2.5 Hz (dual wavelength detection; 190 to 600 nm)

G7114A A/P

1260 Infinity II Diode Array Detector WR ± 7 μAU/cm noise; 120 Hz; spectra; eight signals; 190 to 950 nm G7115A A/P

1260 Infinity II Multiple Wavelength Detector ± 7 μAU/cm noise; 120 Hz; eight signals; 190 to 950 nm G7165A A/P

Special Detection

1260 Infinity II Evaporative Light

Scattering Detector

For subambient operation; flow range 0.2 to 5 mL/min; evaporator

temperature 25 to 120 °C; nebulizer temperature 25 to 90 °C

G4260B A/P

LC/MSD Mass selective detector; up to m/z 2000 G6125B A/P

LC/MSD XT Mass selective detector; up to m/z 3000 high mass range;

30 ms polarity switching; Agilent Jet Stream as option

G6135B A/P

Support Modules

1290 Infinity II MS Flow Modulator Suitable for flow rates up to 200 mL/min; maximum pressure 69 bar; supports

split ratios between 100:1 and 100,000:1 with split frequencies up to 2 Hz

G7170B P

1260 Infinity II Delay Coil Organizer Up to nine delay coils can be installed; includes leak sensor and pressure

relief valve for increased laboratory safety

G9324A P

Fraction Collection

1290 Infinity II Preparative Open-Bed

Fraction Collector

Up to 200 mL/min flow; delay sensor technology; capacity 432 fractions;

maximum tube height 150 mm; all materials in flow path inert

G7159B P

1260 Infinity II Preparative Valve-Based

Fraction Collector

Up to 200 mL/min flow; delay sensor technology; capacity 11 fractions;

all materials in flow path inert

G7166A P

1260 Infinity II Preparative Fraction Collector Up to 100 mL/min flow; delay sensor technology; capacity 215 fractions;

maximum tube height 100 mm

G1364E P

1260 Infinity II Analytical-Scale Fraction Collector Up to 10 mL/min flow; delay sensor technology; capacity 215 fractions;

maximum tube height 48 mm

G1364F A

1260 Infinity II Analytical-Scale Bio-Inert

Fraction Collector

Up to 10 mL/min flow; delay sensor technology; capacity 215 fractions;

maximum tube height 48 mm

G5664B A

1290 Infinity II Preparative

Open-Bed Sampler/Collector

Maximum flow rate 200 mL/min; up to 20 mL injection loops; maximum capacity up

to 9 microtiter plates, 432 fraction tubes or 360 vials, or combination for injection and

fraction collection

G7158B P

1260 Infinity II Preparative Autosampler Maximum flow rate 200 mL/min; 0.1 to 3600 μL injection from vials; capacity

132 × 2 mL vials in 2 trays, or 36 × 6 mL vials in 2 trays

G7157A P

1290 Infinity II Multisampler 0 to 20 μL or 0 to 100 μL single-stroke injection at 1300 bar; up to 1500 μL with

optional kits; sample capacity up to 432 vials and up to 16 microtiter plates;

multiwash option for less than 9 ppm carryover; optional sample thermostat available

(Option #101); dual-needle option for highest throughput and flexibility

G7167B A

1290 Infinity II Vialsampler 0.1 to 20 μL (optionally 40 μL); up to 120 μL with multidraw mode at 1300 bar;

sample capacity up to 132 × 2 mL vials; optional integrated column compartment for

column heating up to 80 °C; optional integrated sample thermostat for sample

temperature control in the range of 4 to 40 °C (Option #101)

G7129B A

1260 Infinity II Multisampler 0 to 100 μL single-stroke injection at 800 bar; up to 1800 μL with optional kits; sample

capacity up to 432 vials and up to 16 microtiter plates; multiwash option for less than

9 ppm carryover; optional sample thermostat available (Option #101); dual-needle

option for highest throughput and flexibility

G7167A A

1260 Infinity II Vialsampler 0.1 to 100 μL injection from vials at up to 600 bar; up to 1800 μL with optional kits;

optional integrated column compartment for column heating up to 80 °C; optional

integrated sample thermostat for sample temperature control in the range of

4 to 40 °C (Option #101)

G7129A A

1260 Infinity II Bio-Inert

Multisample

0 to 100 μL single-stroke injection at 600 bar; up to 1000 μL with optional kits; sample

capacity up to 432 vials and up to 16 plates; multiwash option for less than 9 ppm

carryover; optional integrated sample thermostat for sample temperature control in

the range of 4-40 °C (Option #101)

G5668A A

Column/Valve Compartments and Organization

1290 Infinity II Preparative

Column Compartment

Holds up to four analytical columns, up to six preparative columns, and valves;

includes leak sensor for increase laboratory safety

G7163B P

1290 Infinity II Multicolumn

Thermostat

20 degrees below ambient to 110 °C; up to four 30 cm columns and up to eight

10 cm columns; up to eight individual InfinityLab Quick Connect heat exchangers for

standard-flow, high-flow, and ultralow dispersion; optional valve drive for InfinityLab

Quick Change valve heads

G7116B A

1260 Infinity II Column Organizer Maximum capacity of three columns; holds a manual injector; includes leak sensor

for increase laboratory safety

G9328A P

1260 Infinity II Multicolumn Thermostat 10 degrees below ambient to 85 °C; up to four 30 cm columns; up to four individual

InfinityLab Quick Connect heat exchangers; optional valve drive for InfinityLab Quick

Change valve heads (up to 800 bar and up to 4-column selection without replumbing)

G7116A A

1290 Infinity II Preparative Binary Pump Up to 200 mL/min; 600 bar; 4.6 to 50 mm column id; exchangeable pump heads;

integrated active seals wash and SSV

G7161B P

1260 Infinity II Preparative Binary Pump Up to 50 mL/min; 420 bar; 4.6 to 30 mm column id; integrated active seals wash G7161A P

1260 Infinity II Isocratic Pump 600 bar up to 5 mL/min; 200 bar up to 10 mL/min; integrated degassing unit

and SSV as option

G7110B A/M

1260 Infinity II Binary Pump 600 bar up to 5 mL/min; integrated degassing unit G7112B A

1260 Infinity II Quaternary Pump 600 bar up to 5 mL/min; 200 bar up to 10 mL/min; integrated degassing unit G7111B A/M

1260 Infinity II Bio-Inert Pump 600 bar up to 5 mL/min; 200 bar up to 10 mL/min; integrated degassing unit

quaternary mixing; bio-inert flow path

G5654A A

Valve Solutions

1290 Infinity Valve Drive For enhanced injection modes and advanced valve-switching applications

such as online SPE

G1170A P

1260 Infinity II Cluster Valve For clustering up to three fraction collectors G9322A P

InfinityLab Quick Change 2-Position/10-Port

Prep Valve

Maximum pressure 600 bar; maximum flow rate 200 mL/min G4730A P

InfinityLab Quick Change 8-Position/9-Port

Prep Valve

Maximum pressure 600 bar; maximum flow rate 200 mL/min G4731A P

InfinityLab Quick Change 6-Position/14-Port

Prep Valve

Maximum pressure 600 bar; maximum flow rate 200 mL/min G4734B P

InfinityLab Quick Change 2-Position/14-Port

Prep Valve

Maximum pressure 600 bar; maximum flow rate 200 mL/min G4738A P

Sample Injection (Manual)

1260 Infinity II Manual Preparative Injector 20 μL to 20 mL injection loops G1328D P

1260 Infinity II Manual Injector 5 μL to 5 mL injection loops G1328C A

1260 Infinity II Bio-Inert Manual Injector 5 μL to 5 mL injection loops G5628A A

 Quick Reference Guide

Agilent InfinityLab LC Purification Solutions

Agilent offers tailor-made, high-efficiency LC purification solutions ranging from analytical to preparative scale. This comprehensive portfolio of state-of-the-art LC purification instruments offers you scalable LC purification solutions to meet your needs and budget. InfinityLab columns and supplies are designed to work seamlessly with Agilent InfinityLab instruments, and draw on 40+ years of technological leadership.

With Agilent OpenLab software and support from Agilent CrossLab instrument and enterprise service plans, Agilent provides a complete purification solution that will make a real difference to your lab’s operational efficiency.

1290 Infinity II Preparative LC Systems – Purify with the new benchmark in efficiency

Aspire to maximum efficiency in your purification workflows. Get maximum flexibility to solve all your purification challenges with highest purity, recovery, and speed.

1260 Infinity II Preparative LC Systems – Benefit from efficient purification – every day

Achieve highest purity and recovery with the most affordable fraction collector. Get highest flexibility in fraction size while maintaining high-precision recovery.

1220/1260/1290 Infinity II Analytical-Scale LC Purification Systems – Experience the power of analytical compound isolation

(Only preparative-scale systems are covered in this guide)

Isolate your compounds of interest through high-performance separation and low‑dispersion fraction collection. Choose the bio-inert option for purification of your proteins or sensitive samples 2

Pumps

PM*Part Number
Supplies for 1260 Infinity II Preparative Binary Pump (G7161A)
Standard preventive maintenance parts
Preventive maintenance kit, for the 1260 Infinity II preparative binary pump (G7161A), and 1290 Infinity II preparative binary pump (G7161B) equipped with 50 mL/min pump headsPM kitG7161-68730
Solvent bottle inlet filter, preparative, 20 μm, SST, 2/pk2 each5023-3115
Filter assembly, preparative, 12.7 mm id, 2 μm, SST1 each5022-2192
Piston Seal, for 1260 Infinity II preparative binary pump and 1290 Infinity II preparative binary pump G7161B with AtP pump head4 each5067-4299
Seal wash PE for 1260 Infinity II preparative binary pump G7161A and for AtP pump head, 1/pk4 each5067-6587
Peristaltic pump with PharMed tubing1 each5065-4445
Extended preventive maintenance parts
Piston collar, 5 mm, for G7161A 1260 Infinity II preparative binary pump and G7161B 1290 Infinity II preparative binary pump with AtP pump headG7161-60005
Check valve assembly, inlet/outlet, for G7161A/B preparative pump, with 50 mL/min pump head5067-6642
Purge valve prepG7161-60036
Solvent mixerG1312-87330
Silicone tubing, 1 mm id, 3 mm od, 5 m5065-9978
Other supplies
Bottle head assembly for 1260/1290 Infinity II Preparative LC systemG7161-60042
InfinityLab capillary kit, for flow rate range 4 to 8 mL/min or column with 9.4 mm id5067-7015
InfinityLab capillary kit, for flow rate range 15 to 40 mL/min or column with 21.2 mm id5067-7016
InfinityLab capillary kit, for flow rate range 40 to 80 mL/min or column with 30 mm id5067-7017
InfinityLab Supplies for 1290 Infinity II Preparative Binary Pump G7161B
Standard preventive maintenance parts (200 mL/min flow pump heads)
Preventive maintenance kit 1290 Infinity II Preparative Binary PumpPM kitG7161-68740
Piston seal, for 1290 Infinity II preparative binary pump G7161B with preparative pump head4 each5067-6589
Seal wash PE for 1290 Infinity II preparative binary pump G7161B, 1/pk4 each5067-6588
Filter assembly, preparative, 12.7 mm id, 2 μm, SST1 each5022-2192
Peristaltic pump with PharMed tubing1 each5065-4445
PM*Part Number
Standard preventive maintenance parts (optional 50 mL pump heads)
Preventive maintenance kit, for the 1260 Infinity II preparative binary pump (G7161A), and 1290 Infinity II preparative binary pump (G7161B) equipped with 50 mL/min pump headsPM kitG7161-68730
Piston Seal, for 1260 Infinity II preparative binary pump and 1290 Infinity II preparative binary pump G7161B with AtP pump head4 each/option depending5067-4299
Seal wash PE for 1260 Infinity II preparative binary pump G7161A and for ATP pump head, 1/pk4 each/option depending5067-6587
Solvent bottle inlet filter, preparative, 20 μm, SST, 2/pk2 each5023-3115
Extended preventive maintenance parts
Check valve assembly double seat, inlet/outletG7161-60052
Piston, for G7161B 1290 Infinity II preparative binary pump with preparative pump headG7161-60028
Purge valve prepG7161-60036
Solvent MixerG1312-87330
Silicone tubing, 1 mm id, 3 mm od, 5 m5065-9978
Piston collar, 5 mm, for G7161A 1260 Infinity II preparative binary pump and G7161B 1290 Infinity II preparative binary pump with AtP pump headG7161-60005
Check valve assembly, inlet/outlet, for G7161A/B preparative pump, with 50 mL/min pump head5067-6642
Other supplies
Bottle head assembly, for 1260/1290 Infinity II Preparative LC systemG7161-60042
InfinityLab capillary kit, for flow rate range 4 to 8 mL/min or column with 9.4 mm id5067-7015
InfinityLab capillary kit, for flow rate range 15 to 40 mL/min or column with 21.2 mm id5067-7016
InfinityLab capillary kit, for flow rate range 40to 80 mL/min or column with 30 mm id5067-7017
InfinityLab capillary kit, for flow rate range 80 to 200 mL/min or column with 50 mm id5067-7018

 Quick Reference Guide

Agilent InfinityLab Supplies for the 1260 Infinity II Preparative LC System

Agilent Technologies is committed to optimizing your laboratory’s productivity, so we have produced this list of the most commonly ordered supplies and parts for the 1260 Infinity II Preparative LC System.

Preparative Binary Pump supplies (G7161A)PM*Part number
Bottle head assemblyG7161-60042
Solvent inlet filter, stainless steel, 20 μm, 2/pk2 each5023-3115
Capillary kit, LC/UV 4-8 mL/min, for 9.4 or 10 mm id columns5067-6858
Capillary kit, LC/UV 15-40 mL/min, for 21.2 mm id columns5067-6859
Peristaltic pump, with Pharmed tubing1 each5065-4445
Seal wash tubing, 5 m5065-9978
Filter frit, 2 μm1 each5022-2192
Piston seal (pump head, 50 mL)4 each5067-4299
Wash seal (pump head, 50 mL)4 each5067-6587
Piston (pump head, 50 mL)G7161-60005
Check valve cartridge (pump head, 50 mL)5067-6642
PM kit, for 1260 Infinity II preparative binary pump, 50 mL/min pump headsKitG7161-68730
Preparative Autosampler supplies (G7157A)PM*Part number
Needle1 eachG7157-87201
Needle seat1 eachG7157-87101
Rotor seal injection valve1 each5068-0268
Peristaltic pump, with Pharmed tubing1 each5065-4445
Gripper finger caps, 15/pk1 each5063-6506
Sample loopG7157-60515
Multi draw loop kit, 5 mL, for G7157AG7157-68711
Drawer, for 66 x 2 mL vialsG7129-60010
Drawer, for 18 x 6 mL vialsG7129-60110
Drawer kit, for 100 x 2 mL vialsG7129-68210
PM kit, 1260 Infinity II preparative autosamplerKitG7157-68730
* PM (preventive maintenance) relevant part information:

– x each: amount of part needed per PM

– kit: preventive maintenance kit that includes all standard parts for PM

– optional: part required for PM only if referring option is installed



HPLC Preparative

HPLC Preparative 200 mL/min

HPLC Semi-Preparative 50 mL/min

HPLC Analytical : 0.01 to 10 mL/min

دستگاه HPLC Preparative برای جداسازی و تخلیص purification  نمونه ها

دستگاه HPLC Preparative تخلیص پروتئین, دستگاه HPLC Preparative Agilent,دستگاه fplc,

1 دیدگاه برای HPLC Preparative

  1. امتیاز 5 از 5

    نیما

    سپاس


دیدگاه خود را بنویسید
